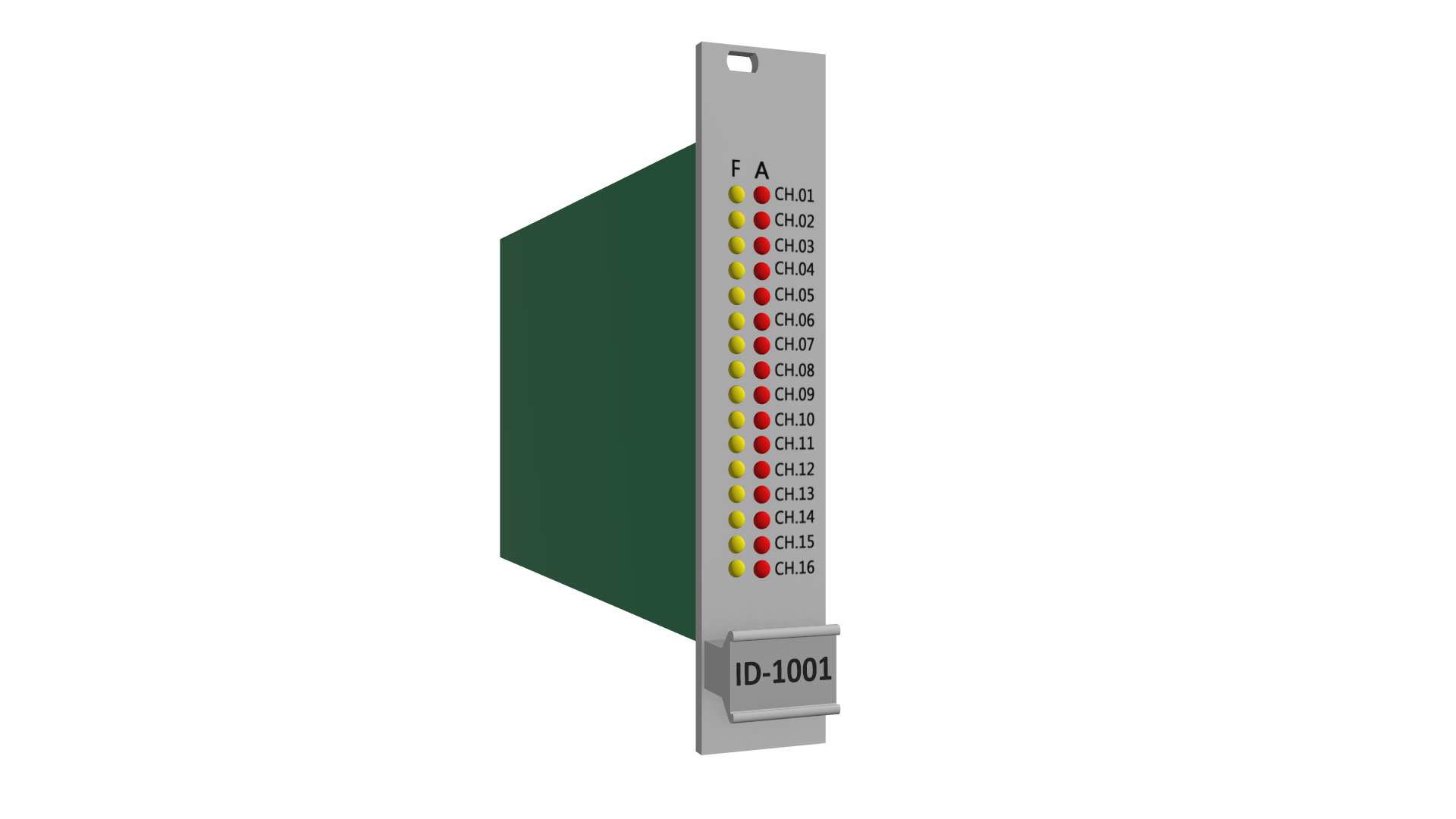

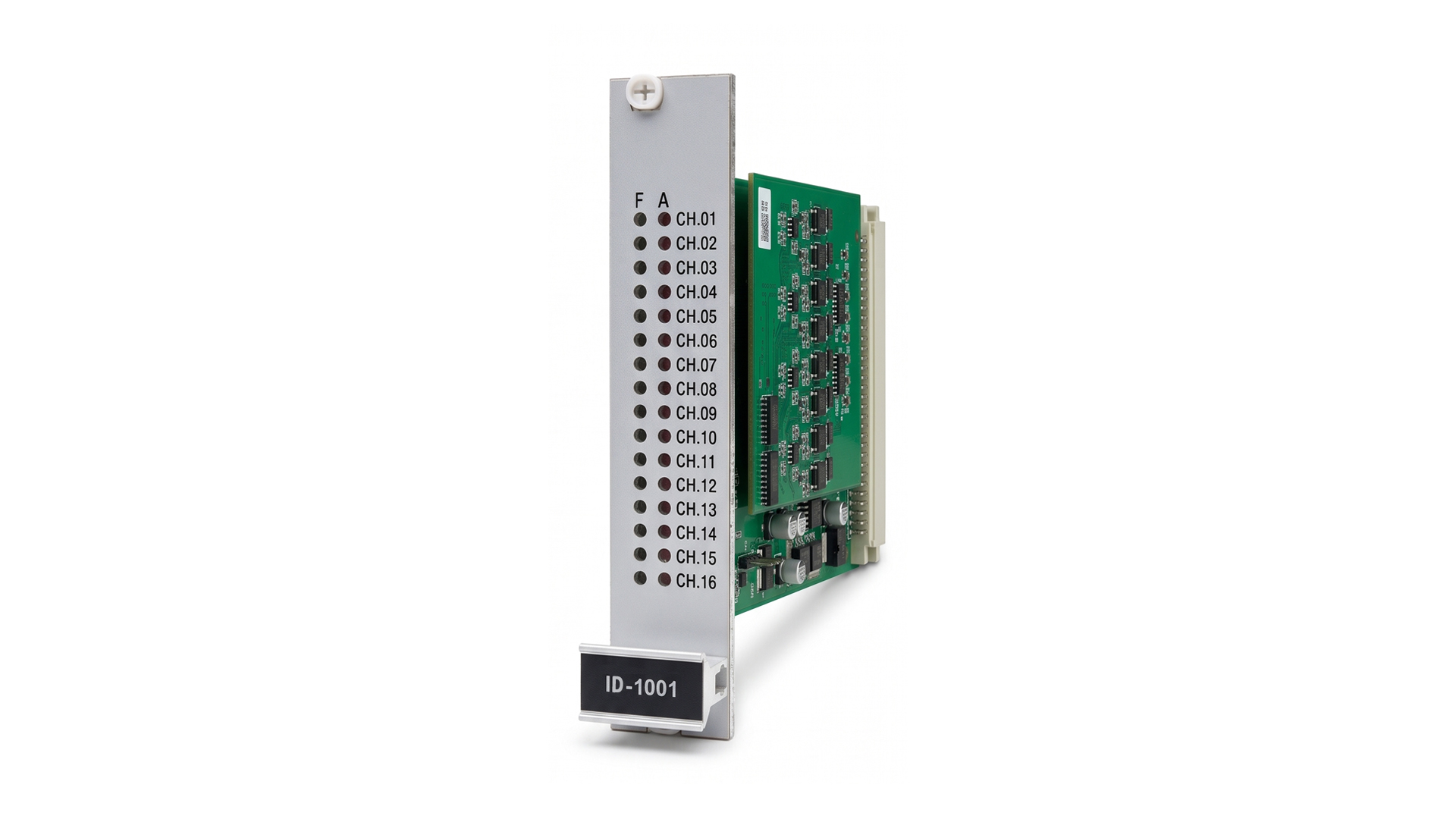

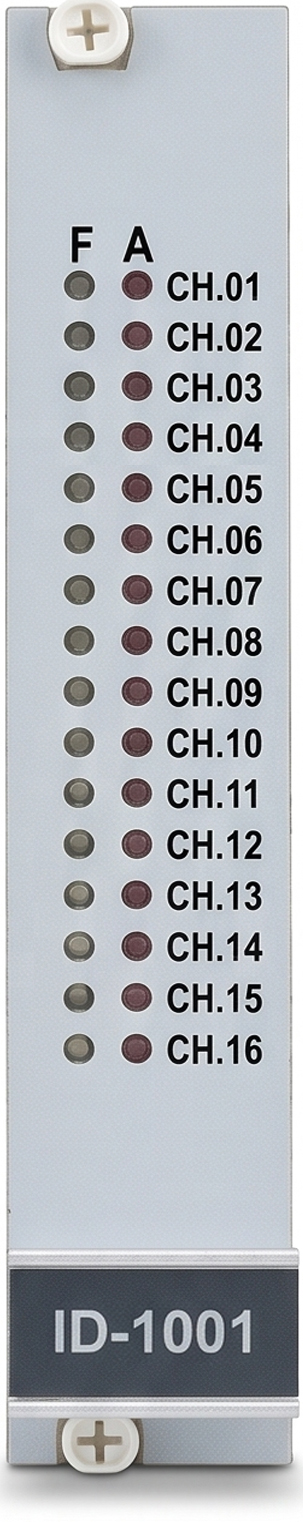

ID1001

16 Inputs for conventional sensors for safety related functions. All channels can be reset singularly and are reset during operation every 30 seconds. This card is suitable to manage detection systems with conventional devices; it is suitable for use in systems with already existing detection lines, to command automatic extinguishing systems with double consent logics or intrinsic safety systems. Additionally, it is used to control all typical devices of extinguishing systems (pressure gauges, discharge keys, etc).

Main Features

Supply voltage: 18-30Vdc
Normal Current: 80mA
Possibility to activate alarm status verification
Double programmable alarm threshold for each line
Adaptable to various types and brands of detectors
Can monitor and control 16 monitored lines individually
Programmable safety or security operating mode
Line inclusion/exclusion through panel keyboard
Automatic testing of each line every thirty seconds
Internal logic management by micro-controller
Redundancy: No
Operating modes: configurable through software.
Short circuit status on the line: with current >23.5mA
Operating Temperature: -5 to +60 °C
Maximum humidity: 95% W/C
