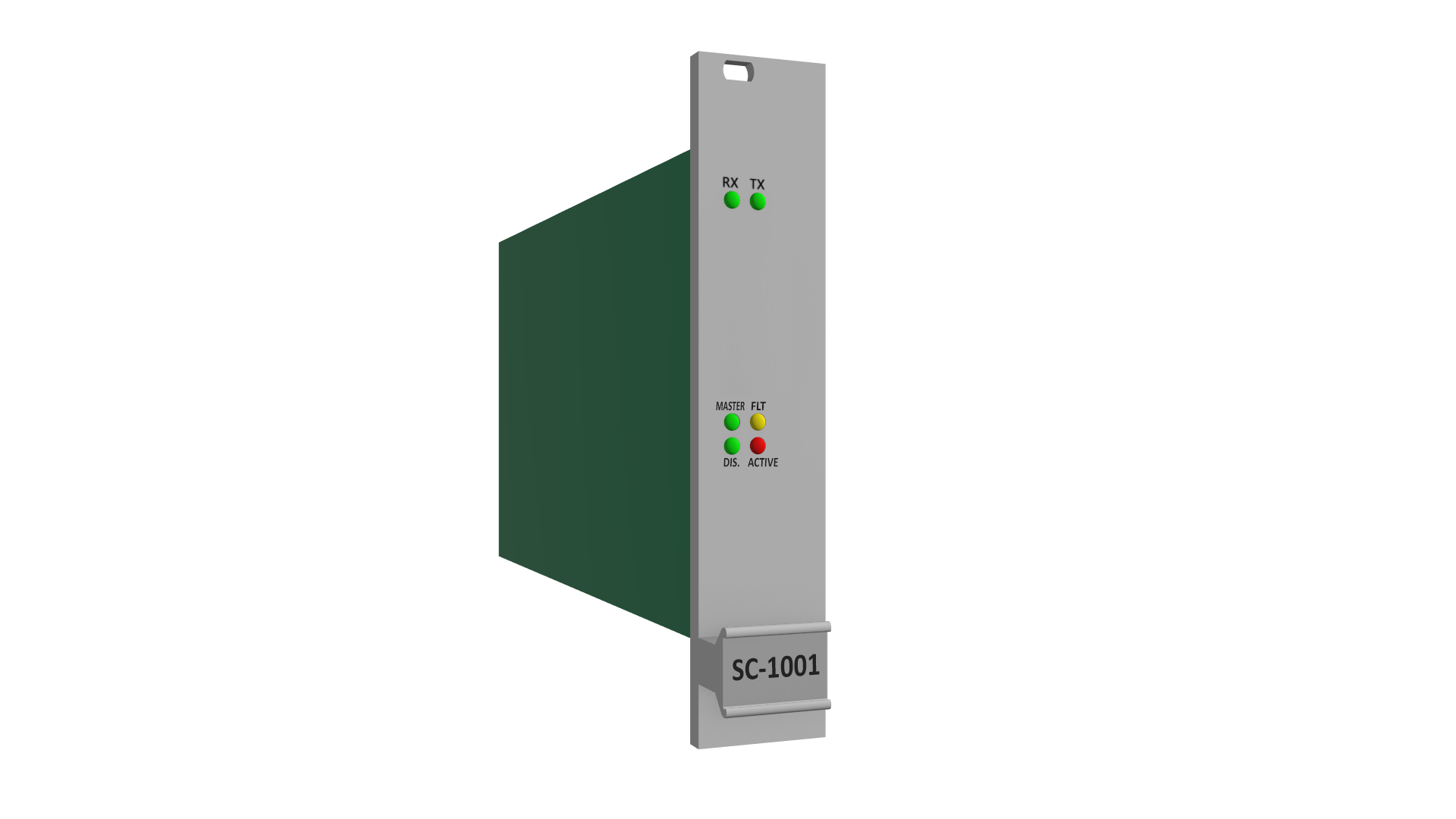

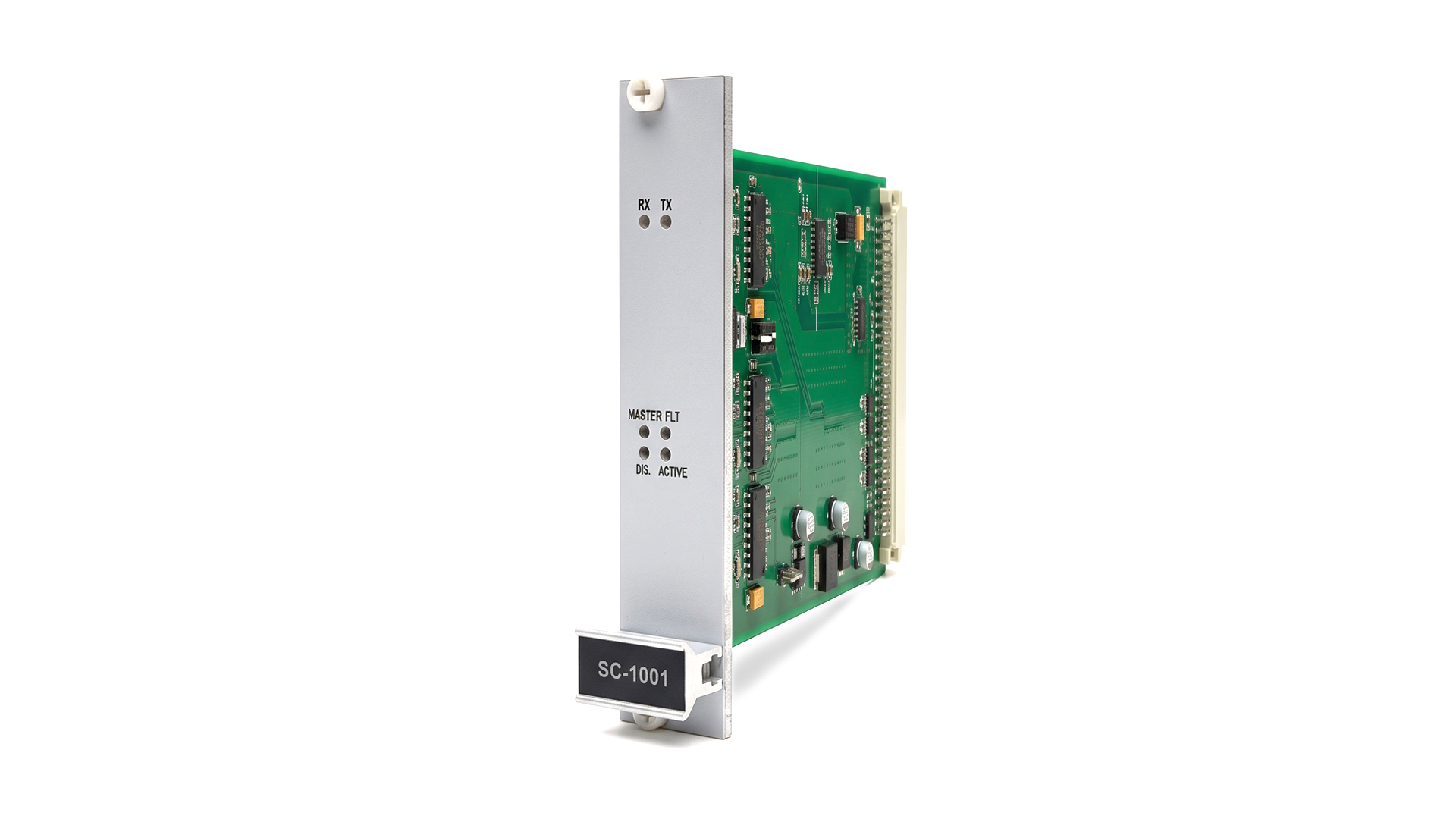

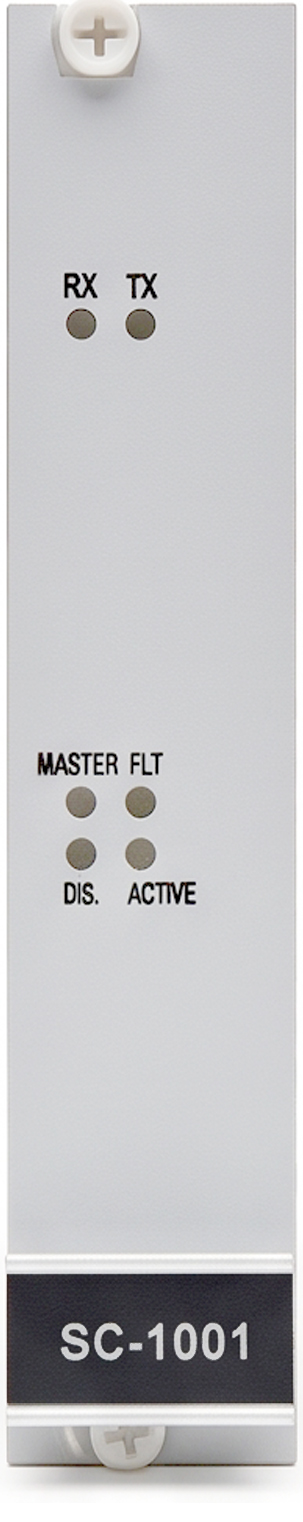

Communication Modbus RTU Card with Master/slave Modbus protocol. It manages the following Modbus variables: 512 Input variables, 512 Output variables, 1024 16-bit analogue variables. The values on to 4-20mA analogue cards can be transmitted to the DCS system.
Its Output supplies two independent connections, a RS485 Half Duplex and a RS232.
The analogue variables boast the engineered values relative to 4-20mA analogue cards.
Main Features
Supply voltage: 18-30 Vdc
Normal Current: 50mA
Redundancy: No
Operating modes: Master/Slave
Ports: RS232 + RS485
Operating Temperature: -5 to +60 °C
Maximum humidity: 95% W/C
